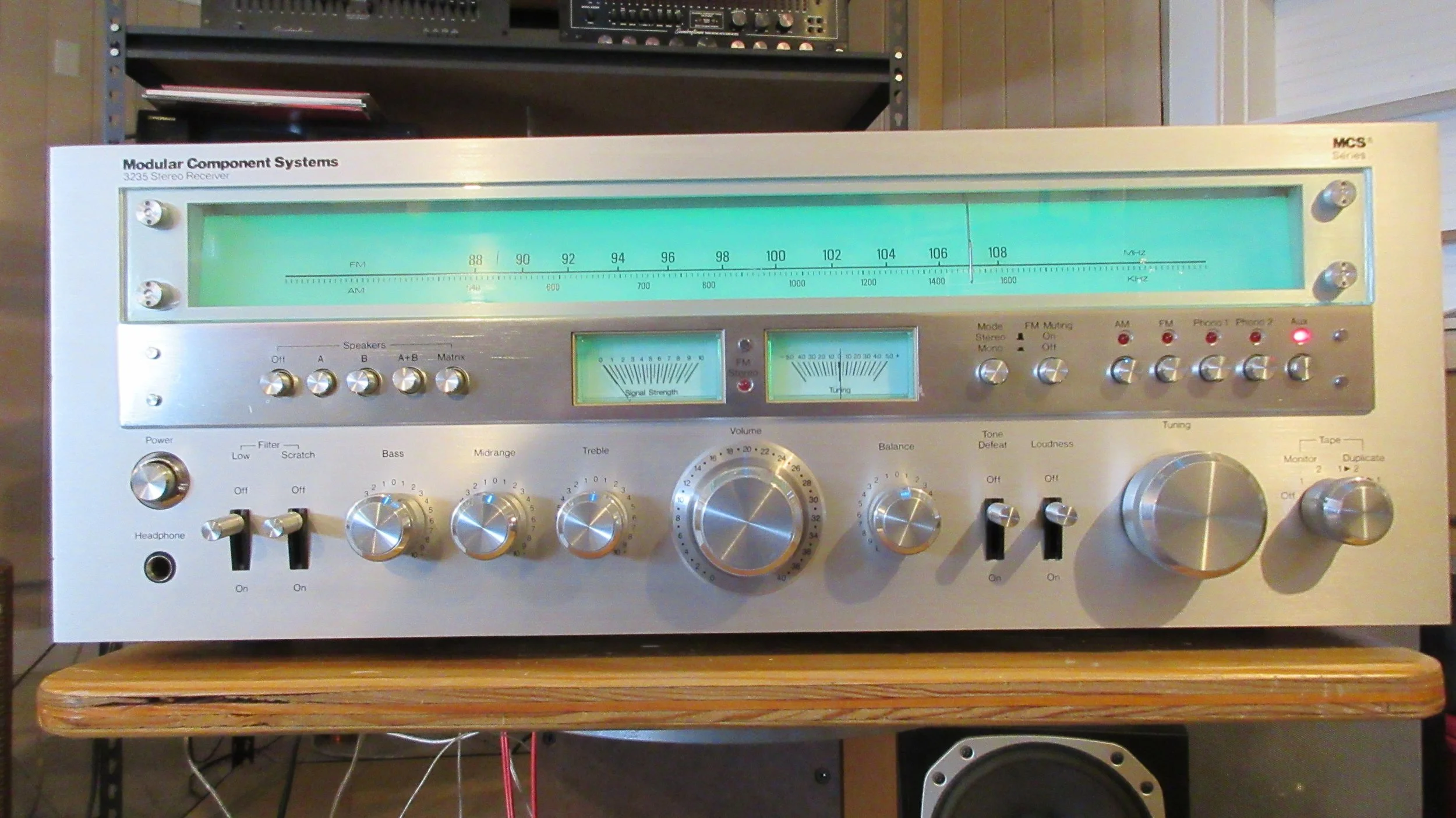

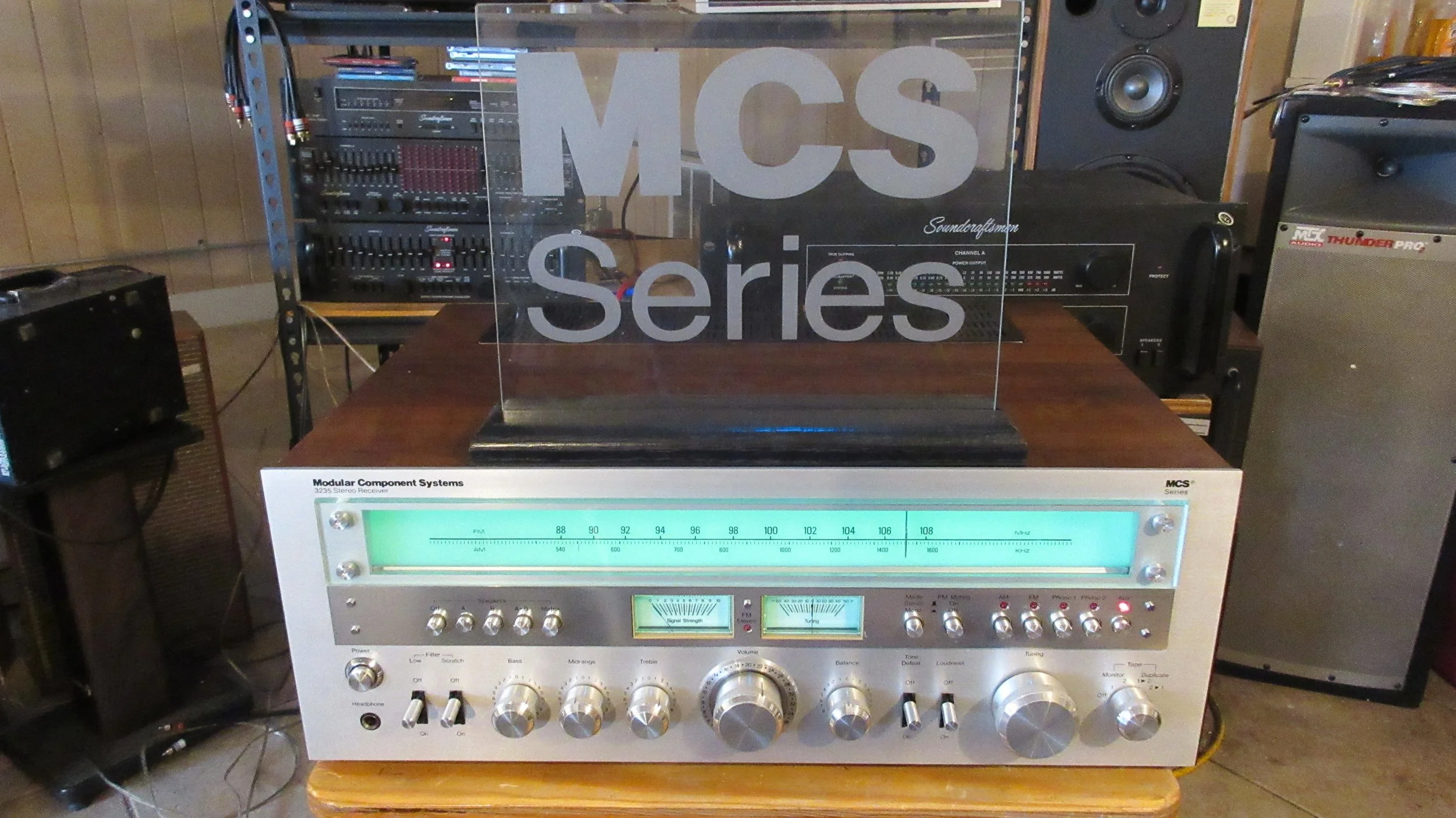

MCS 3235 stereo receiver
Serviced:

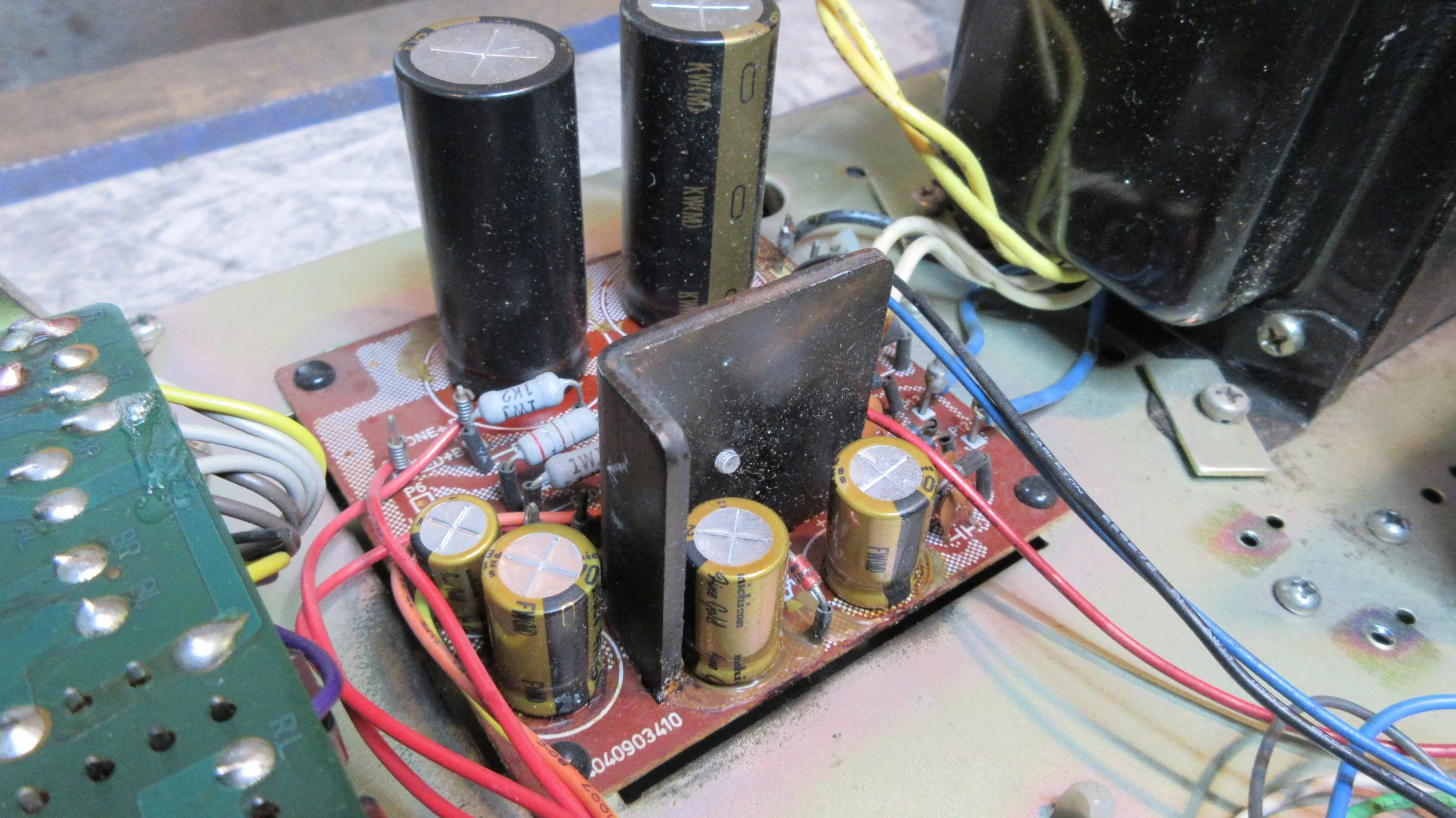

-replaced all electrolytic capacitors with quality parts

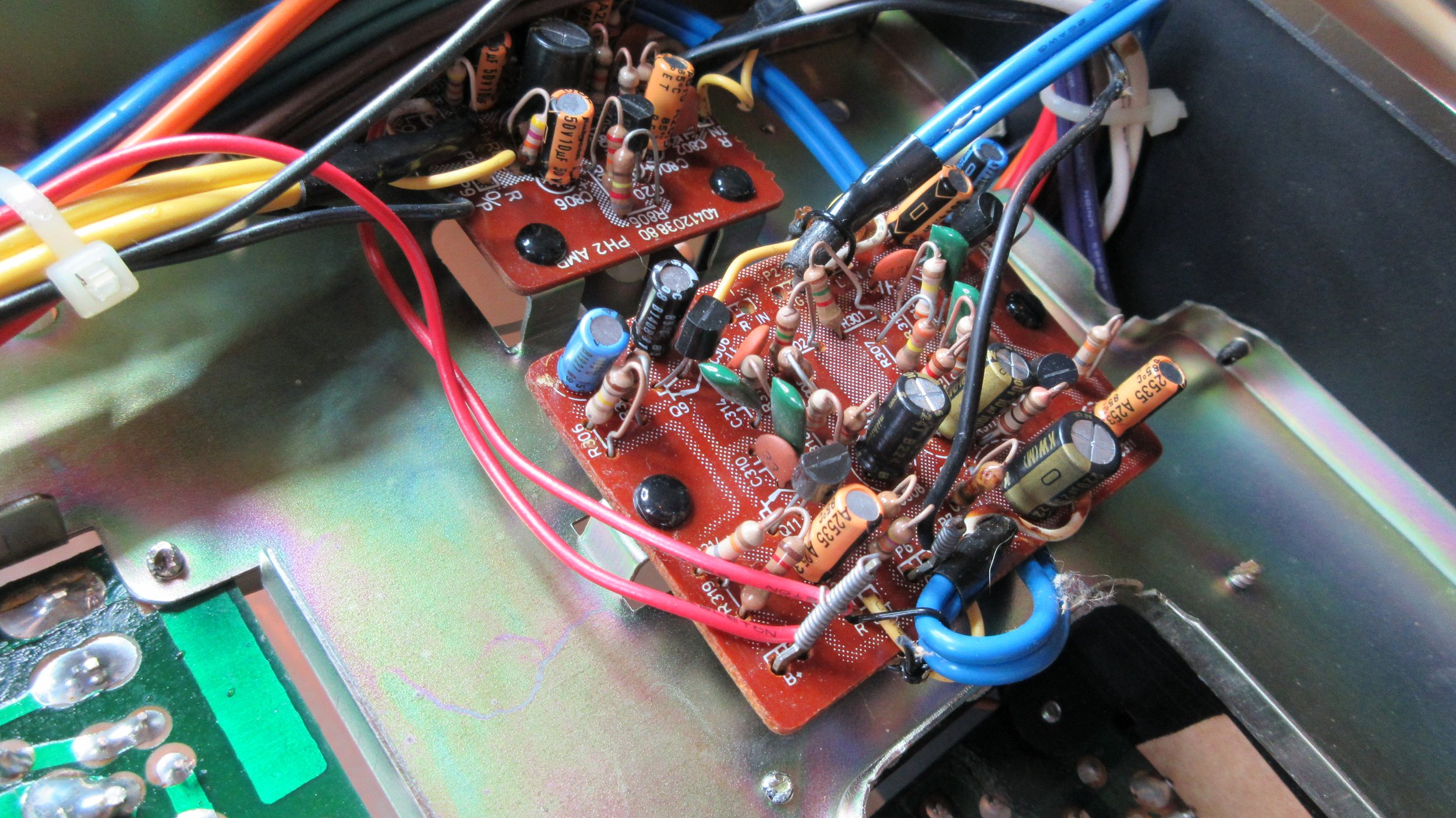

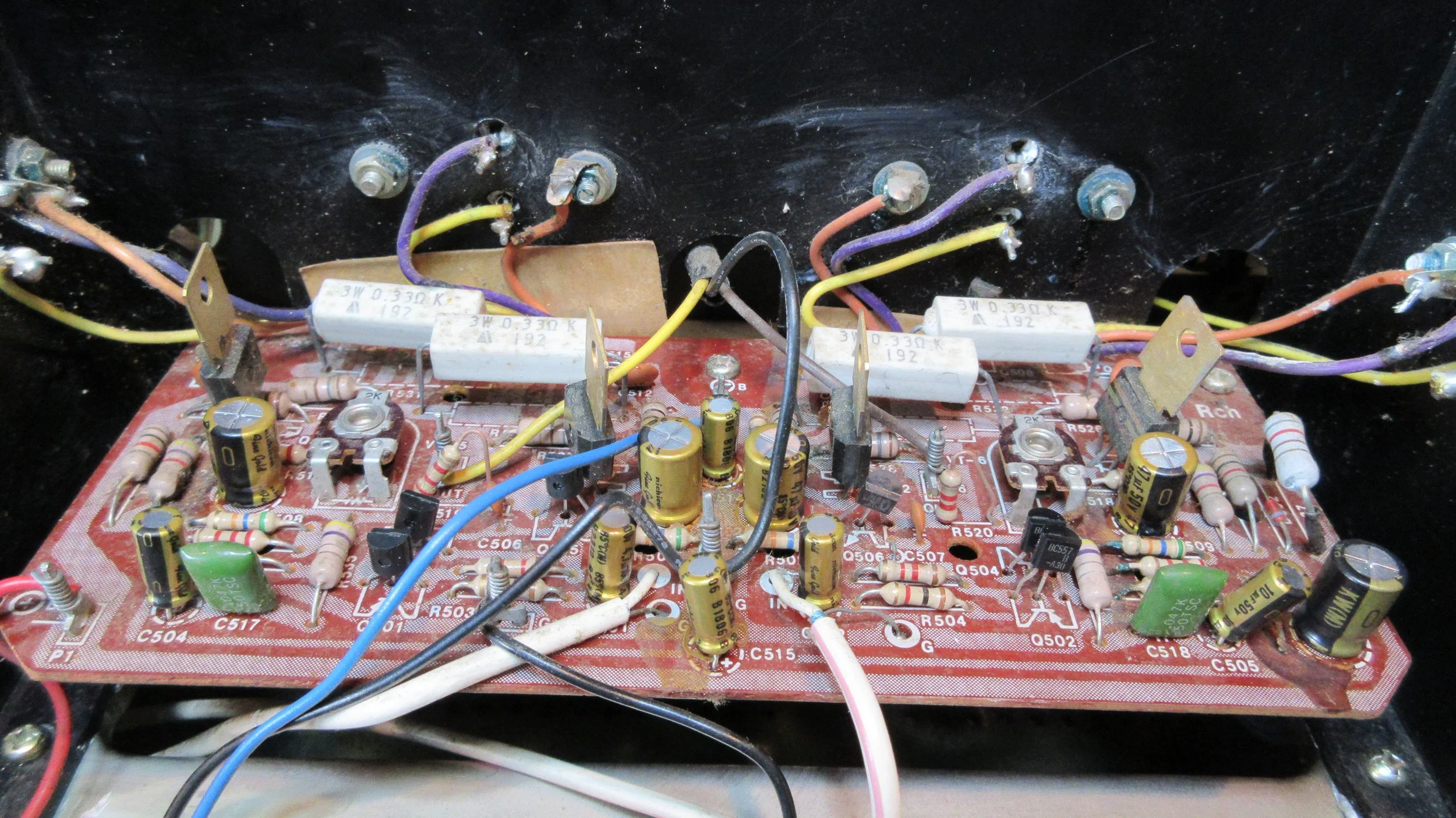

-replaced amp input differential transistors with matched pairs
-apllied CPU thermal grease to the heatsink to chassis connection
-replaced transformer, original had a shorted winding and ran hot

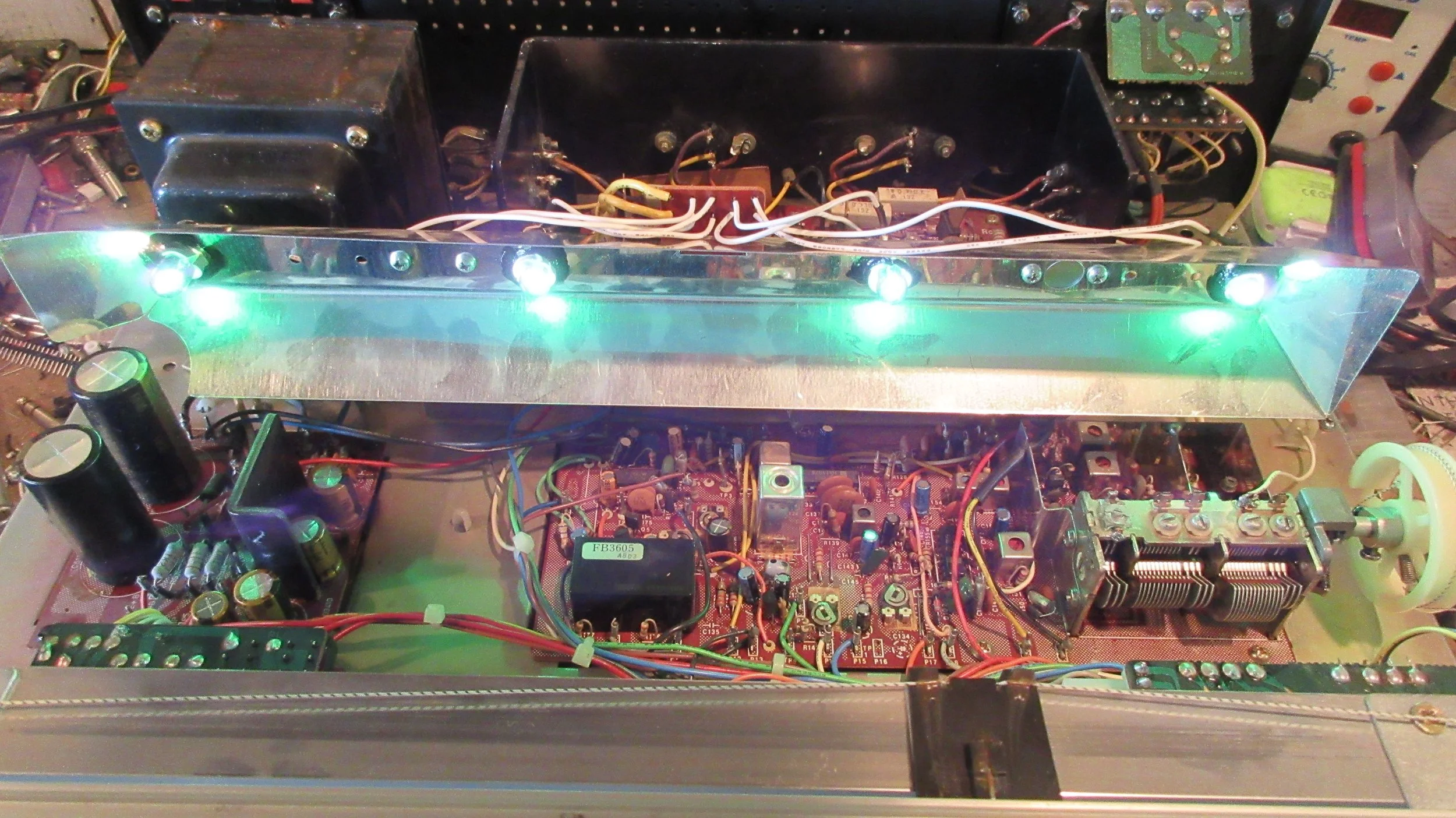

-replaced lamp bulbs with green bulbs
-lubed all switches and pots

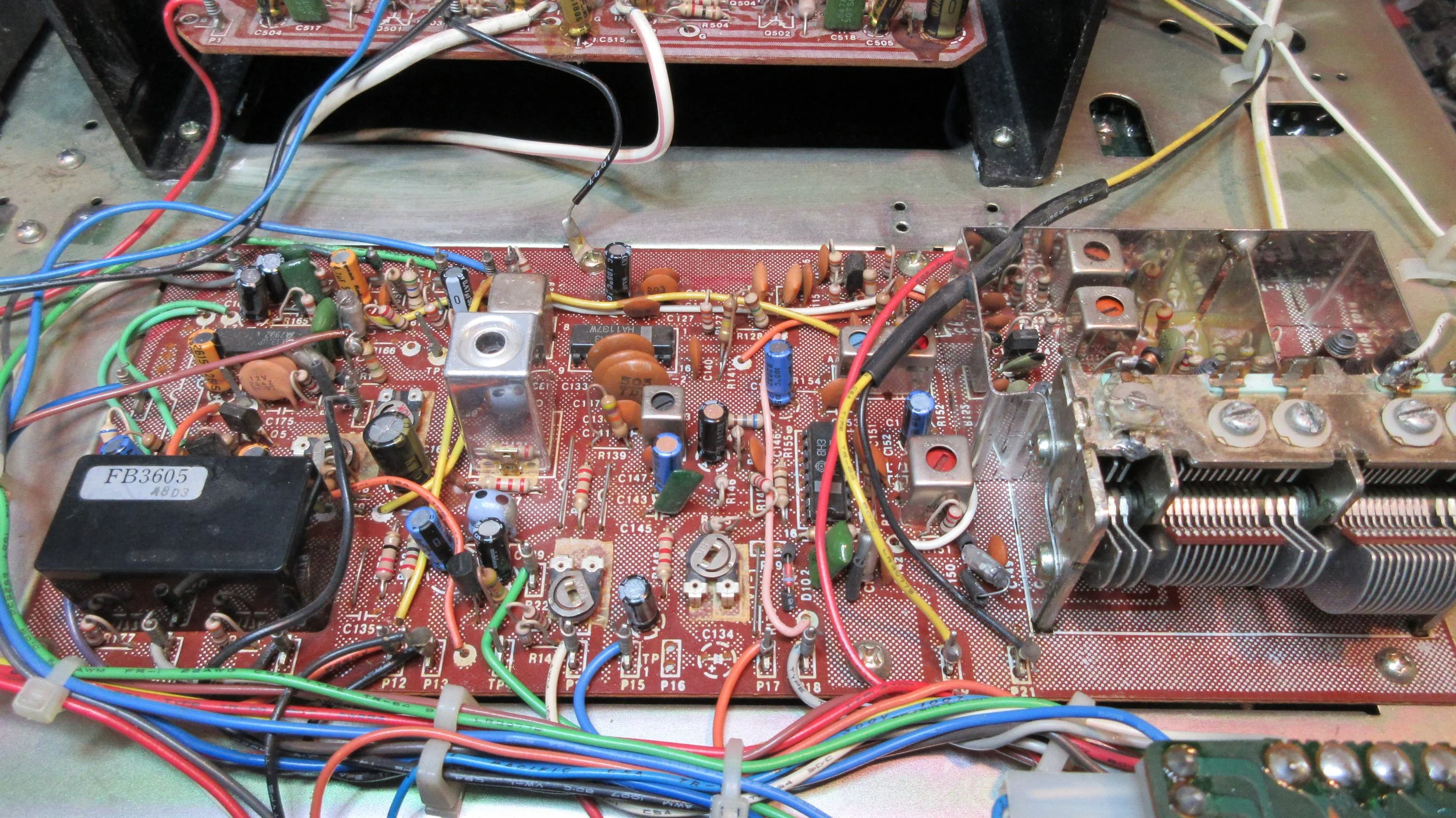

-replaced variable tuning capacitor with cracked nylon drive gear, with metal geared unit from MCS 3275
-aligned tuner AM/FM
-tested distortion 0.036% THD at 35W
Rated at 35 watts per channel 8 ohm
